#include <BubbleIDFieldPackInfo.h>

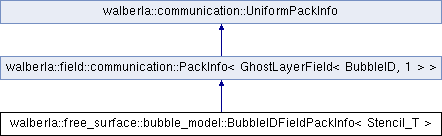

Inheritance diagram for walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >:

Public Types
using	CommunicationStencil_T

using	field_t = GhostLayerField< BubbleID, 1 >

Public Types inherited from walberla::field::communication::PackInfo< GhostLayerField< BubbleID, 1 > >
using	T

Public Member Functions
	BubbleIDFieldPackInfo (const BlockDataID &bdId, MergeInformation *mergeInfo)

bool	threadsafeReceiving () const override
	Must return false if calling unpackData and/or communicateLocal is not thread-safe.

void	unpackData (IBlock *receiver, stencil::Direction dir, mpi::RecvBuffer &buffer) override
	Unpack received Data.

void	communicateLocal (const IBlock sender, IBlock receiver, stencil::Direction dir) override
	Copy data from one local block to another local block.

Public Member Functions inherited from walberla::field::communication::PackInfo< GhostLayerField< BubbleID, 1 > >
	PackInfo (const BlockDataID &bdId)

	PackInfo (const BlockDataID &bdId, const uint_t numberOfGhostLayers)

	~PackInfo () override=default

bool	constantDataExchange () const override
	Should return true if the amount of data that is packed for a given block in direction "dir" is guaranteed to remain constant over time.

bool	threadsafeReceiving () const override
	Must return false if calling unpackData and/or communicateLocal is not thread-safe.

void	unpackData (IBlock *receiver, stencil::Direction dir, mpi::RecvBuffer &buffer) override
	Unpack received Data.

void	communicateLocal (const IBlock sender, IBlock receiver, stencil::Direction dir) override
	Copy data from one local block to another local block.

Public Member Functions inherited from walberla::communication::UniformPackInfo
	UniformPackInfo ()=default

virtual	~UniformPackInfo ()=default

void	packData (const IBlock *sender, stencil::Direction dir, mpi::SendBuffer &buffer) const
	Pack data from a block into a send buffer.

virtual void	beforeStartCommunication ()
	This function is called once before the communication is started by the UniformBufferedScheme.

virtual void	afterStartCommunication ()
	This function is called once after the communication has been started by the UniformBufferedScheme.

virtual void	beforeWait ()
	This function is called once before the UniformBufferedScheme waits for the communication to finish.

virtual void	afterWait ()
	This function is called once after the communication has been finished by the UniformBufferedScheme.

Protected Member Functions
void	lookForMerges (const field_t::iterator &i, stencil::Direction dir, const field_t *field)

Protected Member Functions inherited from walberla::field::communication::PackInfo< GhostLayerField< BubbleID, 1 > >
void	packDataImpl (const IBlock *sender, stencil::Direction dir, mpi::SendBuffer &outBuffer) const override
	Pack data from a block into a send buffer.

uint_t	numberOfGhostLayersToCommunicate (const GhostLayerField< BubbleID, 1 > *const field) const

Protected Member Functions inherited from walberla::communication::UniformPackInfo

Protected Attributes
MergeInformation *	mergeInfo_

Protected Attributes inherited from walberla::field::communication::PackInfo< GhostLayerField< BubbleID, 1 > >
const BlockDataID	bdId_

bool	communicateAllGhostLayers_

uint_t	numberOfGhostLayers_

Protected Attributes inherited from walberla::communication::UniformPackInfo
std::map< const IBlock *, std::map< stencil::Direction, size_t > >	bufferSize_

Member Typedef Documentation

◆ CommunicationStencil_T

template<typename Stencil_T >

using walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >::CommunicationStencil_T

Initial value:

typename std::conditional_t< Stencil_T::D == uint_t(2), stencil::D2Q9, stencil::D3Q27 >

walberla::uint_t

std::size_t uint_t

Definition DataTypes.h:133

◆ field_t

template<typename Stencil_T >

using walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >::field_t = GhostLayerField< BubbleID, 1 >

Constructor & Destructor Documentation

◆ BubbleIDFieldPackInfo()

template<typename Stencil_T >

walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >::BubbleIDFieldPackInfo	(	const BlockDataID &	bdId,
		MergeInformation *	mergeInfo )

inline

Member Function Documentation

◆ communicateLocal()

template<typename Stencil_T >

void walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >::communicateLocal	(	const IBlock *	sender,
		IBlock *	receiver,
		stencil::Direction	dir )

inlineoverridevirtual

Copy data from one local block to another local block.

Both blocks are allocated on the current process. If NOT thread-safe, threadsafeReceiving must return false!

Parameters

sender	id of block where the data should be copied from
receiver	id of block where the data should be copied to
dir	the direction of the communication ( from sender to receiver )

Implements walberla::communication::UniformPackInfo.

◆ lookForMerges()

template<typename Stencil_T >

void walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >::lookForMerges	(	const field_t::iterator &	i,
		stencil::Direction	dir,
		const field_t *	field )

inlineprotected

◆ threadsafeReceiving()

template<typename Stencil_T >

bool walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >::threadsafeReceiving ( ) const

inlineoverridevirtual

Must return false if calling unpackData and/or communicateLocal is not thread-safe.

True otherwise. If you are not sure what to return, return false! Returning false is always safe. Falsely returning true will most likely lead to errors! However, if both unpackData AND communicateLocal are thread-safe, returning true can lead to performance improvements.

Implements walberla::communication::UniformPackInfo.

◆ unpackData()

template<typename Stencil_T >

void walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >::unpackData	(	IBlock *	receiver,
		stencil::Direction	dir,
		mpi::RecvBuffer &	buffer )

inlineoverridevirtual

Unpack received Data.

If NOT thread-safe, threadsafeReceiving must return false!

Implementations must reserve extra space and advance the send buffer pointer according to the alignment of the ghost layer data type! The buffer is char-aligned.

Parameters

receiver	the block where the unpacked data should be stored into
dir	receive data from neighbor in this direction
buffer	buffer for reading the data from

Implements walberla::communication::UniformPackInfo.

Member Data Documentation

◆ mergeInfo_

template<typename Stencil_T >

MergeInformation* walberla::free_surface::bubble_model::BubbleIDFieldPackInfo< Stencil_T >::mergeInfo_

protected

The documentation for this class was generated from the following file:

/builds/administration/walberla-website/walberla/src/lbm/free_surface/bubble_model/BubbleIDFieldPackInfo.h
