Detailed Description

template<typename T, uint_t fSize_>
class walberla::field::GhostLayerField< T, fSize_ >

Extends the Field with ghost-layer information.

All variants of the begin() function exist also in the "WithGhostLayer" variant which iterate over the field including the ghost layers. There are also iterators that go only over the ghost layer or, only over the last inner slice, which is useful when doing ghost layer based communication.

See also Overview of Field Module

#include <GhostLayerField.h>

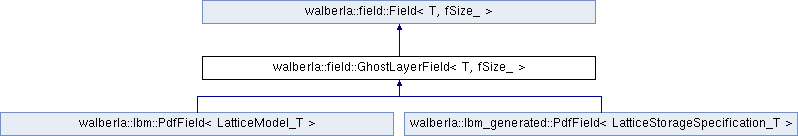

Inheritance diagram for walberla::field::GhostLayerField< T, fSize_ >:

Public Types
Type Definitions
using	value_type = typename Field< T, fSize_ >::value_type

using	iterator = typename Field< T, fSize_ >::iterator

using	const_iterator = typename Field< T, fSize_ >::const_iterator

using	reverse_iterator = typename Field< T, fSize_ >::reverse_iterator

using	const_reverse_iterator = typename Field< T, fSize_ >::const_reverse_iterator

using	base_iterator = typename Field< T, fSize_ >::base_iterator

using	const_base_iterator = typename Field< T, fSize_ >::const_base_iterator

using	Ptr = typename Field< T, fSize_ >::Ptr

using	ConstPtr = typename Field< T, fSize_ >::ConstPtr

using	FlattenedField = typename std::conditional< VectorTrait< T >::F_SIZE !=0, GhostLayerField< typename VectorTrait< T >::OutputType, VectorTrait< T >::F_SIZE *fSize_ >, GhostLayerField< T, fSize_ > >::type

Public Types inherited from walberla::field::Field< T, fSize_ >
using	value_type = T

using	iterator = ForwardFieldIterator< T, fSize_ >

using	const_iterator = ForwardFieldIterator< const T, fSize_ >

using	reverse_iterator = ReverseFieldIterator< T, fSize_ >

using	const_reverse_iterator = ReverseFieldIterator< const T, fSize_ >

using	base_iterator = FieldIterator< T, fSize_ >

using	const_base_iterator = FieldIterator< const T, fSize_ >

using	Ptr = FieldPointer< Field< T, fSize_ >, Field< T, fSize_ >, T >

using	ConstPtr = FieldPointer< Field< T, fSize_ >, const Field< T, fSize_ >, const T >

using	FlattenedField = typename std::conditional< VectorTrait< T >::F_SIZE !=0, Field< typename VectorTrait< T >::OutputType, VectorTrait< T >::F_SIZE *fSize_ >, Field< T, fSize_ > >::type

using	MonitorFunction = std::function< void(cell_idx_t, cell_idx_t, cell_idx_t, cell_idx_t, const T &)>

Public Member Functions
Construction & Destruction
	GhostLayerField (uint_t xSize, uint_t ySize, uint_t zSize, uint_t gl, const Layout &layout=fzyx, const shared_ptr< FieldAllocator< T > > &alloc=shared_ptr< FieldAllocator< T > >())
	Creates an uninitialized field of given size. More...

	GhostLayerField (uint_t xSize, uint_t ySize, uint_t zSize, uint_t gl, const T &initValue, const Layout &layout=fzyx, const shared_ptr< FieldAllocator< T > > &alloc=shared_ptr< FieldAllocator< T > >())
	Creates a field and initializes it with constant value. More...

	GhostLayerField (uint_t xSize, uint_t ySize, uint_t zSize, uint_t gl, const std::vector< T > &fValues, const Layout &layout=fzyx, const shared_ptr< FieldAllocator< T > > &alloc=shared_ptr< FieldAllocator< T > >())
	Creates a field and initializes f coordinate with vector values. More...

	~GhostLayerField () override=default

void	init (uint_t xSizeWithoutGhostLayer, uint_t ySizeWithoutGhostLayer, uint_t zSizeWithoutGhostLayer, uint_t nrGhostLayers, const Layout &layout=fzyx, const shared_ptr< FieldAllocator< T > > &alloc=shared_ptr< FieldAllocator< T > >())
	Initializes a field, must be called exactly once. More...

void	resize (uint_t xSize, uint_t ySize, uint_t zSize) override
	Deletes all stored data, and resizes the field. More...

void	resize (uint_t xSize, uint_t ySize, uint_t zSize, uint_t gl)
	Deletes all stored data, and resizes the field. More...

GhostLayerField< T, fSize_ > *	clone () const

GhostLayerField< T, fSize_ > *	cloneUninitialized () const

GhostLayerField< T, fSize_ > *	cloneShallowCopy () const

FlattenedField *	flattenedShallowCopy () const

Size Information
uint_t	xSizeWithGhostLayer () const

uint_t	ySizeWithGhostLayer () const

uint_t	zSizeWithGhostLayer () const

uint_t	sizeWithGhostLayer (uint_t i) const

uint_t	nrOfGhostLayers () const

CellInterval	xyzSizeWithGhostLayer () const
	Returns the x/y/z Size of the field with ghost layers. More...

Element Access
void	setWithGhostLayer (const T &value)
	Sets all entries (including the ghost layer) of the field to given value. More...

void	setWithGhostLayer (const std::vector< T > &fValues)
	Initializes the f coordinate to values from vector, in all cells including the ghost layers Sets the entry (x,y,z,f) to fValues[f]. More...

Iterators
iterator	beginWithGhostLayer ()
	Iterator over all cells, including the ghost layers. More...

const_iterator	beginWithGhostLayer () const

iterator	beginWithGhostLayer (cell_idx_t numGhostLayers)

const_iterator	beginWithGhostLayer (cell_idx_t numGhostLayers) const

iterator	beginWithGhostLayerXYZ ()
	Iterates only over all cells including ghost layers of XYZ coordinate, f is always 0. More...

const_iterator	beginWithGhostLayerXYZ () const

iterator	beginWithGhostLayerXYZ (cell_idx_t numGhostLayers)

const_iterator	beginWithGhostLayerXYZ (cell_idx_t numGhostLayers) const

iterator	beginGhostLayerOnly (stencil::Direction dir, bool fullSlice=false)
	Iterates only over ghost layers of a given direction. More...

const_iterator	beginGhostLayerOnly (stencil::Direction dir, bool fullSlice=false) const
	Const version of beginGhostLayersOnly() More...

iterator	beginGhostLayerOnly (uint_t thickness, stencil::Direction dir, bool fullSlice=false)
	Iterates only over specified number of ghost layers of a given direction. More...

const_iterator	beginGhostLayerOnly (uint_t thickness, stencil::Direction dir, bool fullSlice=false) const
	Const version of beginGhostLayersOnly(uint_t thickness, stencil::Direction) More...

iterator	beginGhostLayerOnlyXYZ (stencil::Direction dir, cell_idx_t f=0, bool fullSlice=false)
	Iterates only over ghost layers of a given direction, only over xyz coordinates, f is fixed. More...

const_iterator	beginGhostLayerOnlyXYZ (stencil::Direction dir, cell_idx_t f=0, bool fullSlice=false) const
	Const version of beginGhostLayersOnlyXYZ() More...

iterator	beginGhostLayerOnlyXYZ (uint_t thickness, stencil::Direction dir, cell_idx_t f=0, bool fullSlice=false)
	Iterates only over ghost layers of a given direction, only over xyz coordinates, f is fixed. More...

const_iterator	beginGhostLayerOnlyXYZ (uint_t thickness, stencil::Direction dir, cell_idx_t f=0, bool fullSlice=false) const
	Const version of beginGhostLayersOnlyXYZ() More...

iterator	beginSliceBeforeGhostLayer (stencil::Direction dir, cell_idx_t thickness=1, bool fullSlice=false)
	Iterates only over the last slice before ghost layer. More...

const_iterator	beginSliceBeforeGhostLayer (stencil::Direction dir, cell_idx_t thickness=1, bool fullSlice=false) const
	Const version of beginSliceBeforeGhostLayer() More...

iterator	beginSliceBeforeGhostLayerXYZ (stencil::Direction dir, cell_idx_t thickness=1, cell_idx_t f=0, bool fullSlice=false)
	Iterates only over the last slice before ghost layer, only in XYZ direction, f is fixed. More...

const_iterator	beginSliceBeforeGhostLayerXYZ (stencil::Direction dir, cell_idx_t thickness=1, cell_idx_t f=0, bool fullSlice=false) const
	Const version of beginSliceBeforeGhostLayerXYZ() More...

void	getGhostRegion (stencil::Direction dir, CellInterval &ghostAreaOut, cell_idx_t thickness, bool fullSlice=false) const

void	getSliceBeforeGhostLayer (stencil::Direction d, CellInterval &ci, cell_idx_t thickness=1, bool fullSlice=false) const

bool	isInInnerPart (const Cell &cell) const
	Checks if a given cell is in the inner part of the field ( not in ghost region or outside ) More...

Reverse Iterators
reverse_iterator	rbeginWithGhostLayer ()
	Reverse Iterator over all cells, including the ghost layers. More...

const_reverse_iterator	rbeginWithGhostLayer () const

reverse_iterator	rbeginWithGhostLayerXYZ ()
	Iterates only over all cells including ghost layers of XYZ coordinate, f is always 0. More...

const_reverse_iterator	rbeginWithGhostLayerXYZ () const

Slicing
GhostLayerField< T, fSize_ > *	getSlicedField (const CellInterval &interval) const

void	slice (const CellInterval &interval) override
	Changes the coordinate system of the field. More...

void	shiftCoordinates (cell_idx_t cx, cell_idx_t cy, cell_idx_t cz) override

Public Member Functions inherited from walberla::field::Field< T, fSize_ >
	Field (uint_t xSize, uint_t ySize, uint_t zSize, const Layout &layout=fzyx, const shared_ptr< FieldAllocator< T > > &alloc=shared_ptr< FieldAllocator< T > >())
	Creates an uninitialized field of given size. More...

	Field (uint_t xSize, uint_t ySize, uint_t zSize, const T &initValue, const Layout &layout=fzyx, const shared_ptr< FieldAllocator< T > > &alloc=shared_ptr< FieldAllocator< T > >())
	Creates a field and initializes it with constant. More...

	Field (uint_t xSize, uint_t ySize, uint_t zSize, const std::vector< T > &fValues, const Layout &layout=fzyx, const shared_ptr< FieldAllocator< T > > &alloc=shared_ptr< FieldAllocator< T > >())
	Creates a field and initializes f coordinate with vector values. More...

virtual	~Field ()
	Destructor, using Allocator template parameter. More...

void	init (uint_t xSize, uint_t ySize, uint_t zSize, const Layout &layout=fzyx, shared_ptr< FieldAllocator< T > > alloc=shared_ptr< FieldAllocator< T > >(), uint_t innerGhostLayerSizeForAlignedAlloc=0)
	Initializes the field with a given size, in a given layout. More...

Field< T, fSize_ > *	clone () const
	Returns a deep copy of the current field. More...

Field< T, fSize_ > *	cloneUninitialized () const
	Creates a new field that has equal size and layout as this field. More...

Field< T, fSize_ > *	cloneShallowCopy () const
	Returns a shallow copy of the current field. More...

FlattenedField *	flattenedShallowCopy () const
	Returns a flattened shallow copy of the current field. More...

T &	get (cell_idx_t x, cell_idx_t y, cell_idx_t z)
	get function with only (x,y,z) coordinates, assumes fSize=1 More...

const T &	get (cell_idx_t x, cell_idx_t y, cell_idx_t z) const
	get function with only (x,y,z) coordinates, assumes fSize=1 More...

T &	get (cell_idx_t x, cell_idx_t y, cell_idx_t z, cell_idx_t f)
	Non-Const variant of get() More...

const T &	get (cell_idx_t x, cell_idx_t y, cell_idx_t z, cell_idx_t f) const
	Accesses the value at given coordinate. More...

T &	get (cell_idx_t x, cell_idx_t y, cell_idx_t z, uint_t f)
	get() variant which takes a uint_t as last coordinate, as for example Stencil::toIdx() returns More...

const T &	get (cell_idx_t x, cell_idx_t y, cell_idx_t z, uint_t f) const
	get() variant which takes a uint_t as last coordinate, as for example Stencil::toIdx() returns More...

T &	get (const Cell &cell)
	get overload using a cell as input, only possible if fSize=1 More...

const T &	get (const Cell &cell) const
	get overload using a cell as input, only possible if fSize=1 More...

T &	get (const Cell &c, cell_idx_t f)

const T &	get (const Cell &c, cell_idx_t f) const

T &	get (const Cell &c, uint_t f)

const T &	get (const Cell &c, uint_t f) const

T &	get (const base_iterator &iter)
	get overload, where position is specified using an iterator of another field with equal size More...

const T &	get (const base_iterator &iter) const
	get overload, where position is specified using an iterator of another field with equal size More...

T &	operator() (cell_idx_t x, cell_idx_t y, cell_idx_t z)

const T &	operator() (cell_idx_t x, cell_idx_t y, cell_idx_t z) const

T &	operator() (cell_idx_t x, cell_idx_t y, cell_idx_t z, cell_idx_t f)

const T &	operator() (cell_idx_t x, cell_idx_t y, cell_idx_t z, cell_idx_t f) const

T &	operator() (cell_idx_t x, cell_idx_t y, cell_idx_t z, uint_t f)

const T &	operator() (cell_idx_t x, cell_idx_t y, cell_idx_t z, uint_t f) const

T &	operator() (const Cell &cell)

const T &	operator() (const Cell &cell) const

T &	operator() (const Cell &cell, cell_idx_t f)

const T &	operator() (const Cell &cell, cell_idx_t f) const

T &	operator() (const Cell &cell, uint_t f)

const T &	operator() (const Cell &cell, uint_t f) const

T &	operator() (const base_iterator &iter)

const T &	operator() (const base_iterator &iter) const

T &	getNeighbor (cell_idx_t x, cell_idx_t y, cell_idx_t z, stencil::Direction d)
	returns neighboring value of cell in the given direction More...

const T &	getNeighbor (cell_idx_t x, cell_idx_t y, cell_idx_t z, stencil::Direction d) const
	returns neighboring value of cell in the given direction More...

T &	getNeighbor (cell_idx_t x, cell_idx_t y, cell_idx_t z, uint_t f, stencil::Direction d)
	returns neighboring value of cell in the given direction More...

const T &	getNeighbor (cell_idx_t x, cell_idx_t y, cell_idx_t z, uint_t f, stencil::Direction d) const
	returns neighboring value of cell in the given direction More...

T &	getNeighbor (const Cell &cell, stencil::Direction d)
	get overload using a cell as input, only possible if fSize=1, with neighbor access More...

const T &	getNeighbor (const Cell &cell, stencil::Direction d) const
	get overload using a cell as input, only possible if fSize=1, with neighbor access More...

T &	getF (T *const xyz0, const cell_idx_t f)

const T &	getF (const T *const xyz0, const cell_idx_t f) const

T &	getF (T *const xyz0, const uint_t f)

const T &	getF (const T *const xyz0, const uint_t f) const

void	set (const T &value)
	Sets all entries of the field to given value. More...

void	set (const std::vector< T > &fValues)
	Initializes the f coordinate to values from vector Sets the entry (x,y,z,f) to fValues[f]. More...

void	set (const Field< T, fSize_ > &other)
	Copies all entries of the given field to this field. More...

void	set (const Field< T, fSize_ > *other)

void	swapDataPointers (Field< T, fSize_ > &other)
	Swap two fields efficiently by exchanging only values_ pointer The two fields have to have identical sizes and same layout. More...

void	swapDataPointers (Field< T, fSize_ > *other)

bool	operator== (const Field< T, fSize_ > &other) const
	Equality operator compares element-wise. More...

bool	operator!= (const Field< T, fSize_ > &other) const
	Inequality operator compares element-wise. More...

bool	hasSameAllocSize (const Field< T, fSize_ > &other) const
	True if allocation sizes of all dimensions match. More...

bool	hasSameSize (const Field< T, fSize_ > &other) const
	True if sizes of all dimensions match. More...

iterator	begin ()
	Returns iterator, which can iterate over complete field in a suitable order depending on layout. More...

const_iterator	begin () const

iterator	beginXYZ ()
	Iterates only over XYZ coordinate, f is always 0. More...

const_iterator	beginXYZ () const

iterator	beginSlice (cell_idx_t xBeg, cell_idx_t yBeg, cell_idx_t zBeg, cell_idx_t fBeg, cell_idx_t xEnd, cell_idx_t yEnd, cell_idx_t zEnd, cell_idx_t fEnd)
	Returns iterator which iterates over a sub-block of the field. More...

const_iterator	beginSlice (cell_idx_t xBeg, cell_idx_t yBeg, cell_idx_t zBeg, cell_idx_t fBeg, cell_idx_t xEnd, cell_idx_t yEnd, cell_idx_t zEnd, cell_idx_t fEnd) const
	Const variant of beginSlice() More...

iterator	beginSliceXYZ (const CellInterval &interval, cell_idx_t f=0)
	Returns iterator which iterates over a slice, but only in x,y,z coordinates. More...

const_iterator	beginSliceXYZ (const CellInterval &interval, cell_idx_t f=0) const
	Const variant of beginSliceXYZ() More...

const iterator &	end ()

const const_iterator &	end () const

reverse_iterator	rbegin ()
	Returns reverse iterator, which can iterate over complete field in a suitable order depending on layout. More...

const_reverse_iterator	rbegin () const

reverse_iterator	rbeginXYZ ()
	Iterates only over XYZ coordinate, f is always 0. More...

const_reverse_iterator	rbeginXYZ () const

const reverse_iterator &	rend ()

const const_reverse_iterator &	rend () const

uint_t	xSize () const

uint_t	ySize () const

uint_t	zSize () const

uint_t	fSize () const

uint_t	size (uint_t coord) const

uint_t	xAllocSize () const

uint_t	yAllocSize () const

uint_t	zAllocSize () const

uint_t	fAllocSize () const

uint_t	allocSize () const

CellInterval	xyzSize () const

CellInterval	xyzAllocSize () const

Layout	layout () const

int64_t	xStride () const

int64_t	yStride () const

int64_t	zStride () const

int64_t	fStride () const

cell_idx_t	xOff () const

cell_idx_t	yOff () const

cell_idx_t	zOff () const

bool	coordinatesValid (cell_idx_t x, cell_idx_t y, cell_idx_t z, cell_idx_t f) const

Field< T, fSize_ > *	getSlicedField (const CellInterval &interval) const
	Create a different "view" of the field, where the created field has the size of the given sliceInterval. More...

T *	data ()

const T *	data () const

T *	dataAt (cell_idx_t x, cell_idx_t y, cell_idx_t z, cell_idx_t f)

const T *	dataAt (cell_idx_t x, cell_idx_t y, cell_idx_t z, cell_idx_t f) const

T *	dataInner ()

const T *	dataInner () const

shared_ptr< FieldAllocator< T > >	getAllocator () const
	Returns internal data allocator. More...

void	addMonitoringFunction (const MonitorFunction &func)
	Registers a monitoring function. More...

TimestepCounter
uint_t	gl_
	Number of ghost layers. More...

uint8_t	advanceTimestep ()

uint8_t	getTimestep () const

uint8_t	getTimestepPlusOne () const

bool	isEvenTimeStep () const

	GhostLayerField ()
	Creates a field of zero size. More...

Shallow Copy
uint8_t	timestepCounter_

template<typename T2 , uint_t fSize2>
class	GhostLayerField

Field< T, fSize_ > *	cloneShallowCopyInternal () const override
	See Field::cloneShallowCopyInternal() Has to be re-implemented because a new GhostLayerField is created. More...

Field< T, fSize_ >::FlattenedField *	flattenedShallowCopyInternal () const override
	See Field::flattenedShallowCopyInternal() Has to be re-implemented because a new GhostLayerField is created. More...

	GhostLayerField (const GhostLayerField< T, fSize_ > &other)
	Private copy constructor, which does a shallow copy. More...

template<typename T2 , uint_t fSize2>
	GhostLayerField (const GhostLayerField< T2, fSize2 > &other)
	Private copy constructor, which does a flattened shallow copy. More...

Additional Inherited Members
Static Public Attributes inherited from walberla::field::Field< T, fSize_ >
static const uint_t	F_SIZE = fSize_

static const const_iterator	staticConstEnd = ForwardFieldIterator<const T,fSize_>()
	Const end iterator, see end() More...

static const iterator	staticEnd = ForwardFieldIterator<T,fSize_>()
	End iterator, can be used with begin() and beginBlock() More...

static const const_reverse_iterator	staticConstREnd = ReverseFieldIterator<const T,fSize_>()
	Const end iterator, see end() More...

static const reverse_iterator	staticREnd = ReverseFieldIterator<T,fSize_>()
	End iterator, can be used with begin() and beginBlock() More...

Protected Member Functions inherited from walberla::field::Field< T, fSize_ >
	Field (const Field &other)
	Private copy constructor that creates a shallow copy i.e. More...

template<typename T2 , uint_t fSize2>
	Field (const Field< T2, fSize2 > &other)
	Private copy constructor that creates a flattened shallow copy i.e. More...

virtual uint_t	referenceCount () const
	Returns the number of objects that internally use the same data. More...

	Field ()
	Creates an uninitialized field of size zero (no allocated memory) More...

void	setOffsets (uint_t xOffset, uint_t xSize, uint_t yOffset, uint_t ySize, uint_t zOffset, uint_t zSizes)
	Moves the coordinate system of the field. More...

shared_ptr< FieldAllocator< T > >	allocator () const

bool	addressInsideAllocedSpace (const T *const value) const

void	assertValidCoordinates (cell_idx_t x, cell_idx_t y, cell_idx_t z, cell_idx_t f) const

Member Typedef Documentation

◆ base_iterator

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::base_iterator = typename Field<T, fSize_>::base_iterator

◆ const_base_iterator

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::const_base_iterator = typename Field<T, fSize_>::const_base_iterator

◆ const_iterator

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::const_iterator = typename Field<T, fSize_>::const_iterator

◆ const_reverse_iterator

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::const_reverse_iterator = typename Field<T, fSize_>::const_reverse_iterator

◆ ConstPtr

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::ConstPtr = typename Field<T, fSize_>::ConstPtr

◆ FlattenedField

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::FlattenedField = typename std::conditional<VectorTrait<T>::F_SIZE != 0, GhostLayerField<typename VectorTrait<T>::OutputType, VectorTrait<T>::F_SIZE * fSize_>, GhostLayerField<T, fSize_> >::type

◆ iterator

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::iterator = typename Field<T, fSize_>::iterator

◆ Ptr

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::Ptr = typename Field<T, fSize_>::Ptr

◆ reverse_iterator

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::reverse_iterator = typename Field<T, fSize_>::reverse_iterator

◆ value_type

template<typename T , uint_t fSize_>

using walberla::field::GhostLayerField< T, fSize_ >::value_type = typename Field<T, fSize_>::value_type

Constructor & Destructor Documentation

◆ GhostLayerField() [1/6]

template<typename T , uint_t fSize_>

walberla::field::GhostLayerField< T, fSize_ >::GhostLayerField	(	uint_t	_xSize,
		uint_t	_ySize,
		uint_t	_zSize,
		uint_t	gl,
		const Layout &	l = `fzyx`,
		const shared_ptr< FieldAllocator< T > > &	alloc = `shared_ptr<FieldAllocator<T> >()`
	)

Creates an uninitialized field of given size.

Parameters

_xSize	size of x dimension without ghost layers
_ySize	size of y dimension without ghost layers
_zSize	size of z dimension without ghost layers
gl	number of ghost layers
l	memory layout of the field (see Layout)
alloc	class that describes how to allocate memory for the field, see FieldAllocator

◆ GhostLayerField() [2/6]

template<typename T , uint_t fSize_>

walberla::field::GhostLayerField< T, fSize_ >::GhostLayerField	(	uint_t	_xSize,
		uint_t	_ySize,
		uint_t	_zSize,
		uint_t	gl,
		const T &	initVal,
		const Layout &	l = `fzyx`,
		const shared_ptr< FieldAllocator< T > > &	alloc = `shared_ptr<FieldAllocator<T> >()`
	)

Creates a field and initializes it with constant value.

Parameters

_xSize	size of x dimension without ghost layers
_ySize	size of y dimension without ghost layers
_zSize	size of z dimension without ghost layers
gl	number of ghost layers
initVal	every element of the field is set to initVal (also ghost layers)
l	memory layout of the field (see Layout)
alloc	class that describes how to allocate memory for the field, see FieldAllocator

◆ GhostLayerField() [3/6]

template<typename T , uint_t fSize_>

walberla::field::GhostLayerField< T, fSize_ >::GhostLayerField	(	uint_t	_xSize,
		uint_t	_ySize,
		uint_t	_zSize,
		uint_t	gl,
		const std::vector< T > &	fValues,
		const Layout &	l = `fzyx`,
		const shared_ptr< FieldAllocator< T > > &	alloc = `shared_ptr<FieldAllocator<T> >()`
	)

Creates a field and initializes f coordinate with vector values.

Parameters

_xSize	size of x dimension
_ySize	size of y dimension
_zSize	size of z dimension
gl	number of ghost layers
fValues	initializes f coordinate with values from vector (see set(std::vector&) ) also ghost layers
l	memory layout of the field (see Layout)
alloc	class that describes how to allocate memory for the field, see FieldAllocator

◆ ~GhostLayerField()

template<typename T , uint_t fSize_>

walberla::field::GhostLayerField< T, fSize_ >::~GhostLayerField ( )

overridedefault

◆ GhostLayerField() [4/6]

template<typename T , uint_t fSize_>

walberla::field::GhostLayerField< T, fSize_ >::GhostLayerField

protected

Creates a field of zero size.

To use this field call the init function

◆ GhostLayerField() [5/6]

template<typename T , uint_t fSize_>

walberla::field::GhostLayerField< T, fSize_ >::GhostLayerField ( const GhostLayerField< T, fSize_ > & other )

protected

Private copy constructor, which does a shallow copy.

◆ GhostLayerField() [6/6]

template<typename T , uint_t fSize_>

template<typename T2 , uint_t fSize2>

walberla::field::GhostLayerField< T, fSize_ >::GhostLayerField ( const GhostLayerField< T2, fSize2 > & other )

protected

Private copy constructor, which does a flattened shallow copy.

Member Function Documentation

◆ advanceTimestep()

template<typename T , uint_t fSize_>

uint8_t walberla::field::GhostLayerField< T, fSize_ >::advanceTimestep ( )

inline

◆ beginGhostLayerOnly() [1/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::iterator walberla::field::GhostLayerField< T, fSize_ >::beginGhostLayerOnly	(	stencil::Direction	dir,
		bool	fullSlice = `false`
	)

inline

Iterates only over ghost layers of a given direction.

◆ beginGhostLayerOnly() [2/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginGhostLayerOnly	(	stencil::Direction	dir,
		bool	fullSlice = `false`
	)		const

inline

Const version of beginGhostLayersOnly()

◆ beginGhostLayerOnly() [3/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::iterator walberla::field::GhostLayerField< T, fSize_ >::beginGhostLayerOnly	(	uint_t	thickness,
		stencil::Direction	dir,
		bool	fullSlice = `false`
	)

inline

Iterates only over specified number of ghost layers of a given direction.

◆ beginGhostLayerOnly() [4/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginGhostLayerOnly	(	uint_t	thickness,
		stencil::Direction	dir,
		bool	fullSlice = `false`
	)		const

inline

Const version of beginGhostLayersOnly(uint_t thickness, stencil::Direction)

◆ beginGhostLayerOnlyXYZ() [1/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::iterator walberla::field::GhostLayerField< T, fSize_ >::beginGhostLayerOnlyXYZ	(	stencil::Direction	dir,
		cell_idx_t	f = `0`,
		bool	fullSlice = `false`
	)

inline

Iterates only over ghost layers of a given direction, only over xyz coordinates, f is fixed.

◆ beginGhostLayerOnlyXYZ() [2/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginGhostLayerOnlyXYZ	(	stencil::Direction	dir,
		cell_idx_t	f = `0`,
		bool	fullSlice = `false`
	)		const

inline

Const version of beginGhostLayersOnlyXYZ()

◆ beginGhostLayerOnlyXYZ() [3/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::iterator walberla::field::GhostLayerField< T, fSize_ >::beginGhostLayerOnlyXYZ	(	uint_t	thickness,
		stencil::Direction	dir,
		cell_idx_t	f = `0`,
		bool	fullSlice = `false`
	)

inline

Iterates only over ghost layers of a given direction, only over xyz coordinates, f is fixed.

◆ beginGhostLayerOnlyXYZ() [4/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginGhostLayerOnlyXYZ	(	uint_t	thickness,
		stencil::Direction	dir,
		cell_idx_t	f = `0`,
		bool	fullSlice = `false`
	)		const

inline

Const version of beginGhostLayersOnlyXYZ()

◆ beginSliceBeforeGhostLayer() [1/2]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::iterator walberla::field::GhostLayerField< T, fSize_ >::beginSliceBeforeGhostLayer	(	stencil::Direction	dir,
		cell_idx_t	thickness = `1`,
		bool	fullSlice = `false`
	)

inline

Iterates only over the last slice before ghost layer.

◆ beginSliceBeforeGhostLayer() [2/2]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginSliceBeforeGhostLayer	(	stencil::Direction	dir,
		cell_idx_t	thickness = `1`,
		bool	fullSlice = `false`
	)		const

inline

Const version of beginSliceBeforeGhostLayer()

◆ beginSliceBeforeGhostLayerXYZ() [1/2]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::iterator walberla::field::GhostLayerField< T, fSize_ >::beginSliceBeforeGhostLayerXYZ	(	stencil::Direction	dir,
		cell_idx_t	thickness = `1`,
		cell_idx_t	f = `0`,
		bool	fullSlice = `false`
	)

inline

Iterates only over the last slice before ghost layer, only in XYZ direction, f is fixed.

◆ beginSliceBeforeGhostLayerXYZ() [2/2]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginSliceBeforeGhostLayerXYZ	(	stencil::Direction	dir,
		cell_idx_t	thickness = `1`,
		cell_idx_t	f = `0`,
		bool	fullSlice = `false`
	)		const

inline

Const version of beginSliceBeforeGhostLayerXYZ()

◆ beginWithGhostLayer() [1/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginWithGhostLayer

inline

Iterator over all cells, including the ghost layers.

Returns const_iterator, see beginWithGhostLayer()

same as begin() , but with ghost layer

◆ beginWithGhostLayer() [2/4]

template<typename T , uint_t fSize_>

const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginWithGhostLayer ( ) const

◆ beginWithGhostLayer() [3/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::iterator walberla::field::GhostLayerField< T, fSize_ >::beginWithGhostLayer ( cell_idx_t numGhostLayers )

inline

◆ beginWithGhostLayer() [4/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginWithGhostLayer ( cell_idx_t numGhostLayers ) const

inline

◆ beginWithGhostLayerXYZ() [1/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginWithGhostLayerXYZ

inline

Iterates only over all cells including ghost layers of XYZ coordinate, f is always 0.

Const version of beginWithGhostLayerXYZ()

◆ beginWithGhostLayerXYZ() [2/4]

template<typename T , uint_t fSize_>

const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginWithGhostLayerXYZ ( ) const

◆ beginWithGhostLayerXYZ() [3/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::iterator walberla::field::GhostLayerField< T, fSize_ >::beginWithGhostLayerXYZ ( cell_idx_t numGhostLayers )

inline

◆ beginWithGhostLayerXYZ() [4/4]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_iterator walberla::field::GhostLayerField< T, fSize_ >::beginWithGhostLayerXYZ ( cell_idx_t numGhostLayers ) const

inline

◆ clone()

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ > * walberla::field::GhostLayerField< T, fSize_ >::clone

inline

◆ cloneShallowCopy()

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ > * walberla::field::GhostLayerField< T, fSize_ >::cloneShallowCopy

inline

◆ cloneShallowCopyInternal()

template<typename T , uint_t fSize_>

Field< T, fSize_ > * walberla::field::GhostLayerField< T, fSize_ >::cloneShallowCopyInternal

overrideprotectedvirtual

See Field::cloneShallowCopyInternal() Has to be re-implemented because a new GhostLayerField is created.

Reimplemented from walberla::field::Field< T, fSize_ >.

Reimplemented in walberla::lbm::PdfField< LatticeModel_T >, and walberla::lbm_generated::PdfField< LatticeStorageSpecification_T >.

◆ cloneUninitialized()

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ > * walberla::field::GhostLayerField< T, fSize_ >::cloneUninitialized

inline

◆ flattenedShallowCopy()

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::FlattenedField * walberla::field::GhostLayerField< T, fSize_ >::flattenedShallowCopy

inline

◆ flattenedShallowCopyInternal()

template<typename T , uint_t fSize_>

Field< T, fSize_ >::FlattenedField * walberla::field::GhostLayerField< T, fSize_ >::flattenedShallowCopyInternal

overrideprotectedvirtual

See Field::flattenedShallowCopyInternal() Has to be re-implemented because a new GhostLayerField is created.

Reimplemented from walberla::field::Field< T, fSize_ >.

◆ getGhostRegion()

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::getGhostRegion	(	stencil::Direction	dir,
		CellInterval &	ghostAreaOut,
		cell_idx_t	thickness,
		bool	fullSlice = `false`
	)		const

◆ getSliceBeforeGhostLayer()

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::getSliceBeforeGhostLayer	(	stencil::Direction	d,
		CellInterval &	ci,
		cell_idx_t	thickness = `1`,
		bool	fullSlice = `false`
	)		const

◆ getSlicedField()

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ > * walberla::field::GhostLayerField< T, fSize_ >::getSlicedField ( const CellInterval & interval ) const

◆ getTimestep()

template<typename T , uint_t fSize_>

uint8_t walberla::field::GhostLayerField< T, fSize_ >::getTimestep ( ) const

inline

◆ getTimestepPlusOne()

template<typename T , uint_t fSize_>

uint8_t walberla::field::GhostLayerField< T, fSize_ >::getTimestepPlusOne ( ) const

inline

◆ init()

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::init	(	uint_t	_xSize,
		uint_t	_ySize,
		uint_t	_zSize,
		uint_t	gl,
		const Layout &	l = `fzyx`,
		const shared_ptr< FieldAllocator< T > > &	alloc = `shared_ptr<FieldAllocator<T> >()`
	)

Initializes a field, must be called exactly once.

Is automatically called by constructors that take at least one argument

Parameters

_xSize	size of x dimension without ghost layers
_ySize	size of y dimension without ghost layers
_zSize	size of z dimension without ghost layers
gl	number of ghost layers
l	memory layout of the field (see Layout)
alloc	class that describes how to allocate memory for the field, see FieldAllocator

◆ isEvenTimeStep()

template<typename T , uint_t fSize_>

bool walberla::field::GhostLayerField< T, fSize_ >::isEvenTimeStep ( ) const

inline

◆ isInInnerPart()

template<typename T , uint_t fSize_>

bool walberla::field::GhostLayerField< T, fSize_ >::isInInnerPart ( const Cell & cell ) const

Checks if a given cell is in the inner part of the field ( not in ghost region or outside )

◆ nrOfGhostLayers()

template<typename T , uint_t fSize_>

uint_t walberla::field::GhostLayerField< T, fSize_ >::nrOfGhostLayers ( ) const

inline

◆ rbeginWithGhostLayer() [1/2]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_reverse_iterator walberla::field::GhostLayerField< T, fSize_ >::rbeginWithGhostLayer

inline

Reverse Iterator over all cells, including the ghost layers.

Returns const_iterator, see beginWithGhostLayer()

same as rbegin() , but with ghost layer

◆ rbeginWithGhostLayer() [2/2]

template<typename T , uint_t fSize_>

const_reverse_iterator walberla::field::GhostLayerField< T, fSize_ >::rbeginWithGhostLayer ( ) const

◆ rbeginWithGhostLayerXYZ() [1/2]

template<typename T , uint_t fSize_>

GhostLayerField< T, fSize_ >::const_reverse_iterator walberla::field::GhostLayerField< T, fSize_ >::rbeginWithGhostLayerXYZ

inline

Iterates only over all cells including ghost layers of XYZ coordinate, f is always 0.

Const version of beginWithGhostLayerXYZ()

◆ rbeginWithGhostLayerXYZ() [2/2]

template<typename T , uint_t fSize_>

const_reverse_iterator walberla::field::GhostLayerField< T, fSize_ >::rbeginWithGhostLayerXYZ ( ) const

◆ resize() [1/2]

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::resize	(	uint_t	_xSize,
		uint_t	_ySize,
		uint_t	_zSize
	)

overridevirtual

Deletes all stored data, and resizes the field.

The resized field is uninitialized.

Reimplemented from walberla::field::Field< T, fSize_ >.

◆ resize() [2/2]

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::resize	(	uint_t	_xSize,
		uint_t	_ySize,
		uint_t	_zSize,
		uint_t	_gl
	)

Deletes all stored data, and resizes the field.

The resized field is uninitialized.

◆ setWithGhostLayer() [1/2]

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::setWithGhostLayer ( const std::vector< T > & fValues )

Initializes the f coordinate to values from vector, in all cells including the ghost layers Sets the entry (x,y,z,f) to fValues[f].

◆ setWithGhostLayer() [2/2]

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::setWithGhostLayer ( const T & value )

Sets all entries (including the ghost layer) of the field to given value.

◆ shiftCoordinates()

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::shiftCoordinates	(	cell_idx_t	cx,
		cell_idx_t	cy,
		cell_idx_t	cz
	)

overridevirtual

Reimplemented from walberla::field::Field< T, fSize_ >.

◆ sizeWithGhostLayer()

template<typename T , uint_t fSize_>

uint_t walberla::field::GhostLayerField< T, fSize_ >::sizeWithGhostLayer ( uint_t i ) const

inline

◆ slice()

template<typename T , uint_t fSize_>

void walberla::field::GhostLayerField< T, fSize_ >::slice ( const CellInterval & interval )

overridevirtual

Changes the coordinate system of the field.

The origin of the new coordinates is at the cell given by min() of the CellInterval. The new size of the field, is the size of the the CellInterval, however the alloc size does not change. Cells that are not in this cell interval can still be accessed ( by coordinates smaller 0, or bigger than [xyz]Size)

Reimplemented from walberla::field::Field< T, fSize_ >.

◆ xSizeWithGhostLayer()

template<typename T , uint_t fSize_>

uint_t walberla::field::GhostLayerField< T, fSize_ >::xSizeWithGhostLayer ( ) const

inline

◆ xyzSizeWithGhostLayer()

template<typename T , uint_t fSize_>

CellInterval walberla::field::GhostLayerField< T, fSize_ >::xyzSizeWithGhostLayer

inline

Returns the x/y/z Size of the field with ghost layers.

◆ ySizeWithGhostLayer()

template<typename T , uint_t fSize_>

uint_t walberla::field::GhostLayerField< T, fSize_ >::ySizeWithGhostLayer ( ) const

inline

◆ zSizeWithGhostLayer()

template<typename T , uint_t fSize_>

uint_t walberla::field::GhostLayerField< T, fSize_ >::zSizeWithGhostLayer ( ) const

inline

Friends And Related Function Documentation

◆ GhostLayerField

template<typename T , uint_t fSize_>

template<typename T2 , uint_t fSize2>

friend class GhostLayerField

friend

Member Data Documentation

◆ gl_

template<typename T , uint_t fSize_>

uint_t walberla::field::GhostLayerField< T, fSize_ >::gl_

protected

Number of ghost layers.

◆ timestepCounter_

template<typename T , uint_t fSize_>

uint8_t walberla::field::GhostLayerField< T, fSize_ >::timestepCounter_

protected

The documentation for this class was generated from the following files:

/builds/administration/walberla-website/walberla/src/field/GhostLayerField.h
/builds/administration/walberla-website/walberla/src/field/GhostLayerField.impl.h

Detailed Description

template<typename T, uint_t fSize_> class walberla::field::GhostLayerField< T, fSize_ >

Public Types

Public Member Functions

TimestepCounter

Shallow Copy

Additional Inherited Members

Member Typedef Documentation

◆ base_iterator

◆ const_base_iterator

◆ const_iterator

◆ const_reverse_iterator

◆ ConstPtr

◆ FlattenedField

◆ iterator

◆ Ptr

◆ reverse_iterator

◆ value_type

Constructor & Destructor Documentation

◆ GhostLayerField() [1/6]

◆ GhostLayerField() [2/6]

◆ GhostLayerField() [3/6]

◆ ~GhostLayerField()

◆ GhostLayerField() [4/6]

◆ GhostLayerField() [5/6]

◆ GhostLayerField() [6/6]

Member Function Documentation

◆ advanceTimestep()

◆ beginGhostLayerOnly() [1/4]

◆ beginGhostLayerOnly() [2/4]

◆ beginGhostLayerOnly() [3/4]

◆ beginGhostLayerOnly() [4/4]

◆ beginGhostLayerOnlyXYZ() [1/4]

◆ beginGhostLayerOnlyXYZ() [2/4]

◆ beginGhostLayerOnlyXYZ() [3/4]

◆ beginGhostLayerOnlyXYZ() [4/4]

◆ beginSliceBeforeGhostLayer() [1/2]

◆ beginSliceBeforeGhostLayer() [2/2]

◆ beginSliceBeforeGhostLayerXYZ() [1/2]

◆ beginSliceBeforeGhostLayerXYZ() [2/2]

◆ beginWithGhostLayer() [1/4]

◆ beginWithGhostLayer() [2/4]

◆ beginWithGhostLayer() [3/4]

◆ beginWithGhostLayer() [4/4]

◆ beginWithGhostLayerXYZ() [1/4]

◆ beginWithGhostLayerXYZ() [2/4]

◆ beginWithGhostLayerXYZ() [3/4]

◆ beginWithGhostLayerXYZ() [4/4]

◆ clone()

◆ cloneShallowCopy()

◆ cloneShallowCopyInternal()

◆ cloneUninitialized()

◆ flattenedShallowCopy()

◆ flattenedShallowCopyInternal()

◆ getGhostRegion()

◆ getSliceBeforeGhostLayer()

◆ getSlicedField()

◆ getTimestep()

◆ getTimestepPlusOne()

◆ init()

◆ isEvenTimeStep()

◆ isInInnerPart()

◆ nrOfGhostLayers()

◆ rbeginWithGhostLayer() [1/2]

◆ rbeginWithGhostLayer() [2/2]

◆ rbeginWithGhostLayerXYZ() [1/2]

◆ rbeginWithGhostLayerXYZ() [2/2]

◆ resize() [1/2]

◆ resize() [2/2]

◆ setWithGhostLayer() [1/2]

◆ setWithGhostLayer() [2/2]

◆ shiftCoordinates()

◆ sizeWithGhostLayer()

◆ slice()

◆ xSizeWithGhostLayer()

◆ xyzSizeWithGhostLayer()

◆ ySizeWithGhostLayer()

◆ zSizeWithGhostLayer()

Friends And Related Function Documentation

◆ GhostLayerField

template<typename T, uint_t fSize_>
class walberla::field::GhostLayerField< T, fSize_ >
