Tutorial - Basics 1: waLBerla Data Structures: Blocks and Fields

Introduction to block structure and field.

This tutorial walks you through the process of creating a simple waLBerla application. The source file of this tutorial can be found in apps/tutorials/01_BlocksAndFields.cpp. To compile and run this example, go to your build directory into apps/tutorials type make and run the generated executable.

Setting up the Block Structure

The basic data structure of waLBerla are so called blocks. Think of a block as the container of your actual simulation data, for example the lattice (or field as it is called in waLBerla). When writing a simple serial lattice Boltzmann code, one usually has one field representing the whole domain. In waLBerla, the domain is first partitioned into blocks, where each block holds its own field. This has the advantage that the domain can easily be distributed to multiple processes, where every process can have one or more local blocks.

The following snippet shows how to create a simple domain decomposition that results in a uniform block grid:

using namespace walberla;
int main( int argc, char ** argv )
{
Environment env( argc, argv );
// create blocks
shared_ptr< StructuredBlockForest > blocks = blockforest::createUniformBlockGrid(
uint_c( 3), uint_c(2), uint_c( 4), // number of blocks in x,y,z direction
uint_c(10), uint_c(8), uint_c(12), // how many cells per block (x,y,z)
real_c(0.5), // dx: length of one cell in physical coordinates
false, // one block per process? - "false" means all blocks to one process
false, false, false ); // no periodicity
return 0;
}
Initialization of waLBerla.
RAII Object to initialize waLBerla using command line parameters.
Definition Environment.h:39
shared_ptr< StructuredBlockForest > createUniformBlockGrid(const AABB &domainAABB, const uint_t numberOfXBlocks, const uint_t numberOfYBlocks, const uint_t numberOfZBlocks, const uint_t numberOfXCellsPerBlock, const uint_t numberOfYCellsPerBlock, const uint_t numberOfZCellsPerBlock, const uint_t numberOfXProcesses, const uint_t numberOfYProcesses, const uint_t numberOfZProcesses, const bool xPeriodic, const bool yPeriodic, const bool zPeriodic, const bool keepGlobalBlockInformation)
Function for creating a structured block forest that represents a uniform block grid.
Definition Initialization.cpp:419
Storage for detected contacts which can be used to perform actions for all contacts,...
Definition AABBRefinementSelection.h:34
uint_t uint_c(T t)
cast to type uint_t using "uint_c(x)"
Definition DataTypes.h:140
real_t real_c(T t)
cast to type real_t using "real_c(x)"
Definition DataTypes.h:211
int main(int argc, char **argv)
Main Function ///.
Definition 01_BlocksAndFields.cpp:36

Before calling any waLBerla functions one has to create an Environment object, passing the command line arguments. This object takes care of initializing and destroying singletons like for example the MPIManager. This object can also read and parse an input/configuration file, as we will see in a later tutorial.

After initializing waLBerla, the blockforest::createUniformBlockGrid() function sets up a domain with 3×2×4 blocks in x,y,z direction, respectively. We are creating a structured block storage here, meaning the block storage has also knowledge about how the blocks are structured. Here, we specify that each block is structured in a grid consisting of 10×8×12 cells, where each cubic cell has the physical dimension of 0.5×0.5×0.5. With the next parameter, we can choose between assigning all blocks to a single process (which we do here) or putting only one block per process. In case we would only assign one block to each process, we would have to start the program with 3×2×4 processes (since we have 3×2×4 blocks). The last three parameters determine if the domain is periodic in x, y, or z direction.

There are a lot more ways for initializing the block decomposition of the simulation space in waLBerla. For this tutorial, we just use a very simple form of decomposition. In later tutorials, we will see that the domain decomposition can also be controlled via a configuration file that is passed to the application. Also, in general, you can have an arbitrary number of blocks on each process. This can be important for balancing work load. For load balancing, there exist many different algorithms: some make use of METIS, others are based on space filling curves. It is even possible to decompose the simulation space into a set of octrees, resulting in a distributed forest of octrees data structure that contains blocks of different sizes. This form of decomposition can be used for simulations that require some form of grid refinement. For now, however, we stick to a simple, uniform block decomposition.

A few words about the (basic) data types used in waLBerla:

  • walberla::uint_t is used every time an unsigned integral data type is required. It is a typedef of std::size_t. Meaning: Typically, it is not identical to unsigned int. Depending on your system and compiler, it may or may not be identical to long unsigned int. In other words: There are no guarantees about the size.
  • If you need compile and runtime guarantees about the actual size of your integral data types, you can use either walberla::uint8_t, walberla::uint16_t, walberla::uint32_t, or walberla::uint64_t if you need an unsigned data type or walberla::int8_t, walberla::int16_t, walberla::int32_t, or walberla::int64_t if you need a signed data type with 8, 16, 32, or 64 bits, respectively.
  • walberla::real_t is used in many places where a floating point data type is required. At compile time, you can decide whether walberla::real_t evaluates to float or double using the CMake option WALBERLA_DOUBLE_ACCURACY (true by default). If, for a certain algorithm, you always need your floating point data type to be 32 or 64 bit, you of course have to use float or double instead of walberla::real_t.
  • There is also walberla::cell_idx_t, a signed integral data type, used for indexing cells throughout the framework.
  • For casting from one data type to another data type, waLBerla offers a set of different functions: walberla::uint_c in order to cast any data type to a walberla::uint_t data type, walberla::real_c in order to cast any data type to a walberla::real_t data type, walberla::int_c in order to cast any data type to int (there is no walberla::int_t, just int), walberla::uint8_c ..., walberla::uint16_c ..., walberla::uint32_c ..., walberla::uint64_c ..., etc. In release mode, these are just normal static casts. In debug mode, however, all these casts include additional, data type dependent range checks! In other words: If you need to cast one data type to another data type, use walberla::*_c functions.

You might wonder: Why are all these casts used in the code snippet above? Because every literal constant has a type. 3, for example, is of type int. blockforest::createUniformBlockGrid(), however, expects its first argument to be of type walberla::uint_t. 0.5 is of type double, but a walberla::real_t (which might be a single precision float!) is expected. If you want to know more about literal constants and their types, see http://www.cplusplus.com/doc/tutorial/constants/. In order to get rid of all type conversion warnings in every compiler, it turns out wrapping every literal constant with a walberla::*_c function is a good idea.

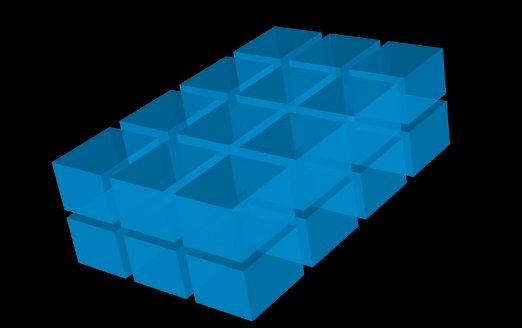

Visualizing the Setup

In order to visualize the domain, we will export it to a VTK file, which can then be inspected using tools like ParaView.

We have to add one more include to our file for the time loop. A detailed description of the time loop follows in the next tutorial.

Timeloop that runs a collection of sweeps.

In the main function we first create a time loop object, which we run:

// blockforest::createUniformBlockGrid(...)
SweepTimeloop timeloop( blocks, uint_c(1) );
timeloop.run();
typename timeloop::SweepTimeloop< > SweepTimeloop
Definition SweepTimeloop.h:192

Storing Data on a Block

So far, we have partitioned our domain into blocks. The next step is to allocate data on these blocks. Think of blocks as containers for your simulation data, where arbitrary data can be stored.

For a lattice Boltzmann simulation, we need a lattice data structure on each block. In waLBerla, the class for storing lattices is called field::Field. It is a four dimensional structure, where the first three dimensions correspond to 3D space, whereas the fourth dimension can be used for indexing within one cell. In lattice Boltzmann simulations, the fourth dimension is usually used for indexing the probability distribution functions (PDFs). This field has two template parameters, the first specifies the data type that is stored, the second the size of the fourth dimension. In our case, we want to store real numbers in the field. We could use float or double values here, however, we use the real_t data type of waLBerla. For this example, we want to create a scalar field, so the second template parameter is set to one.

We want to create a field on each block. Since the blocks are managed by waLBerla (how many there are, on which process they are allocated, ...), we have to tell the framework how to create this field. This is done via a callback function, which is called by waLBerla on every process for every process-local block. This function gets the current block where the data should be allocated, and a constant instance of the block storage, which can be used to get global domain information (for example how many cells per block there are supposed to be). It has to return a pointer to the created block data, which is automatically freed by the framework when the block storage is destroyed. So now lets write the call back function to create a scalar field:

Field<real_t,1> * createFields( IBlock * const block, StructuredBlockStorage * const storage )
{
return new Field<real_t,1> ( storage->getNumberOfXCells( *block ), // number of cells in x direction for this block
storage->getNumberOfYCells( *block ), // number of cells in y direction for this block
storage->getNumberOfZCells( *block ), // number of cells in z direction for this block
real_c(0) ); // initial value
}
Base class for blocks (blocks are used to partition the simulation space: blocks are rectangular part...
Definition IBlock.h:206
Base class for structured block storages (the entire simulation space is partitioned into blocks [see...
Definition StructuredBlockStorage.h:100
uint_t getNumberOfXCells(const uint_t level=0) const
number of global cells in x direction (within the simulation domain on level "level")
Definition StructuredBlockStorage.h:501
uint_t getNumberOfZCells(const uint_t level=0) const
number of global cells in z direction (within the simulation domain on level "level")
Definition StructuredBlockStorage.h:519
uint_t getNumberOfYCells(const uint_t level=0) const
number of global cells in y direction (within the simulation domain on level "level")
Definition StructuredBlockStorage.h:510
A four dimensional field/lattice.
Definition FieldIterator.h:41
Field< real_t, 1 > * createFields(IBlock *const block, StructuredBlockStorage *const storage)
Definition 01_BlocksAndFields.cpp:29

The size of the field is determined by the number of cells provided by the StructuredBlockStorage. So it is the responsibility of the user to create fields that have the same size as previously set in the StructuredBlockStorage. Using this setup mechanism, waLBerla does not enforce that the fields have the same size as the block storage assumes.

Remember: For waLBerla, a block is just a container for arbitrary data - and a field is just an "arbitrary" data item stored on each block. Block data does not have to be any waLBerla data structure. It is possible to store any type of data on a block, so instead of using the field class, we could, for example, have used a std::vector<std::vector<double>> to store our lattice.

The callback function can now be registered at the block storage with the following piece of code:

// blockforest::createUniformBlockGrid(...)
// add a field to all blocks

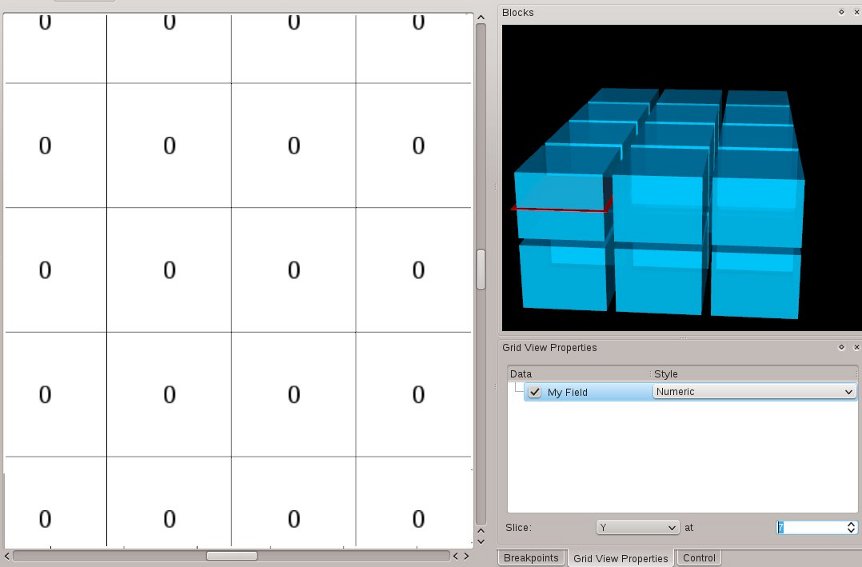

blocks->addStructuredBlockData< Field<real_t,1> >( &createFields, "My Field" );
// time loop ...

The next tutorial contains the writing of algorithms operating on block data: Tutorial - Basics 2: Algorithms on Blocks: Sweeps
