walberla::lbm::VelocityVTKWriter< LatticeModel_T, OutputType > Class Template Reference

#include <Velocity.h>

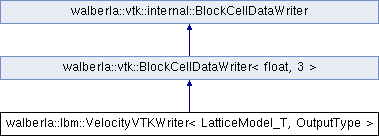

Inheritance diagram for walberla::lbm::VelocityVTKWriter< LatticeModel_T, OutputType >:

Public Types
using	PdfField_T = PdfField< LatticeModel_T >
Public Types inherited from walberla::vtk::BlockCellDataWriter< float, 3 >
using	value_type = float

Public Member Functions
	VelocityVTKWriter (const ConstBlockDataID &pdfFieldId, const std::string &id)
Public Member Functions inherited from walberla::vtk::BlockCellDataWriter< float, 3 >
	BlockCellDataWriter (const std::string &id)
	~BlockCellDataWriter () override=default
void	push (std::ostream &os, const cell_idx_t x, const cell_idx_t y, const cell_idx_t z, const cell_idx_t f) override
	For the documentation of this function, please refer to the documentation/general description of this class. More...
void	push (vtk::Base64Writer &b64, const cell_idx_t x, const cell_idx_t y, const cell_idx_t z, const cell_idx_t f) override
	For the documentation of this function, please refer to the documentation/general description of this class. More...
void	push (std::ostream &os, const cell_idx_t x, const cell_idx_t y, const cell_idx_t z, const cell_idx_t f, const real_t localXCell, const real_t localYCell, const real_t localZCell, const real_t globalX, const real_t globalY, const real_t globalZ, const real_t samplingDx, const real_t samplingDy, const real_t samplingDz) override
	For the documentation of this function, please refer to the documentation/general description of this class. More...
void	push (Base64Writer &b64, const cell_idx_t x, const cell_idx_t y, const cell_idx_t z, const cell_idx_t f, const real_t localXCell, const real_t localYCell, const real_t localZCell, const real_t globalX, const real_t globalY, const real_t globalZ, const real_t samplingDx, const real_t samplingDy, const real_t samplingDz) override
	For the documentation of this function, please refer to the documentation/general description of this class. More...
uint_t	fSize () const override
	must return the size of the fourth dimension More...
std::string	typeString () const override
	Every data type is assigned a specific string in VTK. More...
Public Member Functions inherited from walberla::vtk::internal::BlockCellDataWriter
	BlockCellDataWriter (const std::string &id)
void	configure (const IBlock &block, const StructuredBlockStorage &sbs)
uint_t	xSize () const
uint_t	ySize () const
uint_t	zSize () const
virtual uint_t	fSize () const =0
	must return the size of the fourth dimension More...
virtual std::string	typeString () const =0
	Every data type is assigned a specific string in VTK. More...
const std::string &	identifier () const

Protected Member Functions
void	configure () override
	Every time "configure( const IBlock& block, const StructuredBlockStorage& sbs )" is called, the block and its corresponding structured block storage assigned to the BlockCellDataWriter may change. More...
OutputType	evaluate (const cell_idx_t x, const cell_idx_t y, const cell_idx_t z, const cell_idx_t f) override
Protected Member Functions inherited from walberla::vtk::BlockCellDataWriter< float, 3 >
virtual float	evaluate (const cell_idx_t x, const cell_idx_t y, const cell_idx_t z, const cell_idx_t f, const real_t localXCell, const real_t localYCell, const real_t localZCell, const real_t globalX, const real_t globalY, const real_t globalZ, const real_t samplingDx, const real_t samplingDy, const real_t samplingDz)
Protected Member Functions inherited from walberla::vtk::internal::BlockCellDataWriter
void	setIdentifier (const std::string &id)

Protected Attributes
const ConstBlockDataID	bdid_
const PdfField_T *	pdf_
Protected Attributes inherited from walberla::vtk::internal::BlockCellDataWriter
const IBlock *	block_
const StructuredBlockStorage *	blockStorage_
std::string	identifier_

Additional Inherited Members
Static Public Attributes inherited from walberla::vtk::BlockCellDataWriter< float, 3 >
static const uint_t	F_SIZE

Member Typedef Documentation

PdfField_T

template<typename LatticeModel_T , typename OutputType = float>

using walberla::lbm::VelocityVTKWriter< LatticeModel_T, OutputType >::PdfField_T = PdfField<LatticeModel_T>

Constructor & Destructor Documentation

VelocityVTKWriter()

template<typename LatticeModel_T , typename OutputType = float>

walberla::lbm::VelocityVTKWriter< LatticeModel_T, OutputType >::VelocityVTKWriter ( const ConstBlockDataID &  pdfFieldId, const std::string &  id  )

inline

Member Function Documentation

configure()

template<typename LatticeModel_T , typename OutputType = float>

void walberla::lbm::VelocityVTKWriter< LatticeModel_T, OutputType >::configure ( )

inlineoverrideprotectedvirtual

Every time "configure( const IBlock& block, const StructuredBlockStorage& sbs )" is called, the block and its corresponding structured block storage assigned to the BlockCellDataWriter may change.

This triggers the call of this function which must be implemented and is intended for reacting to these changes.

Implements walberla::vtk::internal::BlockCellDataWriter.

evaluate()

template<typename LatticeModel_T , typename OutputType = float>

OutputType walberla::lbm::VelocityVTKWriter< LatticeModel_T, OutputType >::evaluate ( const cell_idx_t  x, const cell_idx_t  y, const cell_idx_t  z, const cell_idx_t  f  )

inlineoverrideprotectedvirtual

Implements walberla::vtk::BlockCellDataWriter< float, 3 >.

Member Data Documentation

bdid_

template<typename LatticeModel_T , typename OutputType = float>

const ConstBlockDataID walberla::lbm::VelocityVTKWriter< LatticeModel_T, OutputType >::bdid_

protected

pdf_

template<typename LatticeModel_T , typename OutputType = float>

const PdfField_T* walberla::lbm::VelocityVTKWriter< LatticeModel_T, OutputType >::pdf_

protected

---

The documentation for this class was generated from the following file:

• /builds/administration/walberla-website/walberla/src/lbm/vtk/Velocity.h
