walberla::lbm::PdfFieldDisplayAdaptor< field_t, stencil_t > Class Template Reference
Detailed Description
template<typename field_t, typename stencil_t>
class walberla::lbm::PdfFieldDisplayAdaptor< field_t, stencil_t >
Class for drawing a slice of a D3Q19 PDF field.
#include <PdfFieldDisplayAdaptor.h>

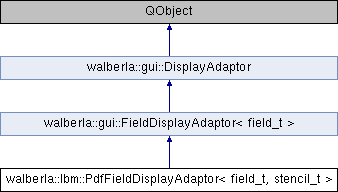

Inheritance diagram for walberla::lbm::PdfFieldDisplayAdaptor< field_t, stencil_t >:
Public Member Functions | |
| PdfFieldDisplayAdaptor (ConstBlockDataID pdfFieldID) | |
| virtual | ~PdfFieldDisplayAdaptor () |
| virtual void | addConfigurationItem (QTreeWidgetItem *parentItem) |
| Optionally adds a QTreeWidgetItem to a tree, containing configuration options. More... | |
| virtual void | draw (QVector< QVector< gui::CellView * > > &grid, int nrOfGhostLayers) |
| void | configure (const IBlock *block, int sliceDim, cell_idx_t sliceValue, Vector3< uint_t > &innerSize, cell_idx_t &ghostLayers) |
| Configures the DisplayAdaptor by passing in a block and slice information. More... | |
| Public Member Functions inherited from walberla::gui::FieldDisplayAdaptor< field_t > | |
| FieldDisplayAdaptor (ConstBlockDataID fieldId) | |
| Public Member Functions inherited from walberla::gui::DisplayAdaptor | |
| virtual void | draw (QVector< QVector< CellView * > > &grid, int nrOfGhostLayers)=0 |
| Draws data structure represented by this Adaptor to a grid of cells Block has to be set first! More... | |
Private Types | |
| typedef field_t::value_type | T |
Private Attributes | |
| gui::DisplayPropertiesItem * | displayProperties_ |
Additional Inherited Members | |
| Signals inherited from walberla::gui::DisplayAdaptor | |
| void | requestRedraw () |
| This signal requests a redraw, for example after a configuration change. More... | |
| Protected Member Functions inherited from walberla::gui::FieldDisplayAdaptor< field_t > | |
| Cell | permuteCoordAccordingToSlice (Cell input, int sliceCoord) |
| void | getFieldSizeInfo (CellInterval &ciOut, cell_idx_t &ghostLayerOut) |
| Protected Attributes inherited from walberla::gui::FieldDisplayAdaptor< field_t > | |
| const field_t * | field_ |
| CellInterval | sliceInterval_ |
| cell_idx_t | sliceDim_ |
| ConstBlockDataID | blockDataId_ |
Member Typedef Documentation
◆ T
template<typename field_t , typename stencil_t >
|
private |
Constructor & Destructor Documentation
◆ PdfFieldDisplayAdaptor()
template<typename field_t , typename St >
| walberla::lbm::PdfFieldDisplayAdaptor< field_t, St >::PdfFieldDisplayAdaptor | ( | ConstBlockDataID | pdfFieldID | ) |
◆ ~PdfFieldDisplayAdaptor()
template<typename field_t , typename St >
|
virtual |
Member Function Documentation
◆ addConfigurationItem()
template<typename field_t , typename St >
|
virtual |
Optionally adds a QTreeWidgetItem to a tree, containing configuration options.
Reimplemented from walberla::gui::DisplayAdaptor.
◆ configure()
template<typename field_t , typename St >
|
virtual |
Configures the DisplayAdaptor by passing in a block and slice information.
- Parameters
-
[in] block the block that should be displayed [in] sliceDim The coordinate value of this dimension is kept constant. Defines the slice direction 0 means x, 1 means y, 2 means z [in] sliceValue The fixed value of the sliceDim coordinate. If the value is not in the allowed range nothing is displayed [out] innerSize size of the field, without ghost layer. innerSize[0] is the horizontal extent and will be the first coordinate in the grid array of draw() innerSize[1] is the vertical extend and will be the second coordinate in the grid array innerSize[2] is used for limiting the allowed sliceValues [out] ghostLayers number of ghost layers for all three dimensions of innerSize
Reimplemented from walberla::gui::FieldDisplayAdaptor< field_t >.
◆ draw()
template<typename field_t , typename Stencil >
|
virtual |
Member Data Documentation
◆ displayProperties_
template<typename field_t , typename stencil_t >
|
private |
The documentation for this class was generated from the following files:
- /builds/administration/walberla-website/walberla/src/lbm/gui/PdfFieldDisplayAdaptor.h
- /builds/administration/walberla-website/walberla/src/lbm/gui/PdfFieldDisplayAdaptor.impl.h
