walberla::gui::FieldDisplayAdaptor< field_t > Class Template Reference
Detailed Description
template<typename field_t>
class walberla::gui::FieldDisplayAdaptor< field_t >
Abstract class, for displaying fields.
Handles common functionality like fetching the field, generating slices etc.
field_t has to implement the concept of a GhostLayerField
#include <FieldDisplayAdaptor.h>

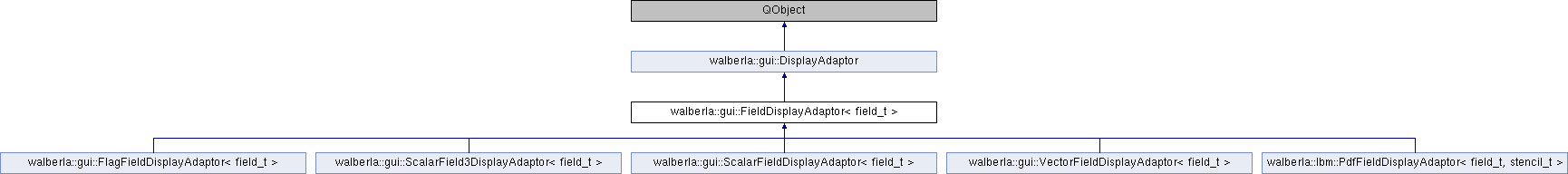

Inheritance diagram for walberla::gui::FieldDisplayAdaptor< field_t >:
Public Member Functions | |
| FieldDisplayAdaptor (ConstBlockDataID fieldId) | |
| void | configure (const IBlock *block, int sliceDim, cell_idx_t sliceValue, Vector3< uint_t > &innerSize, cell_idx_t &ghostLayers) |
| Configures the DisplayAdaptor by passing in a block and slice information. More... | |
| Public Member Functions inherited from walberla::gui::DisplayAdaptor | |
| virtual void | draw (QVector< QVector< CellView * > > &grid, int nrOfGhostLayers)=0 |
| Draws data structure represented by this Adaptor to a grid of cells Block has to be set first! More... | |
| virtual void | addConfigurationItem (QTreeWidgetItem *) |
| Optionally adds a QTreeWidgetItem to a tree, containing configuration options. More... | |
Protected Member Functions | |
| Cell | permuteCoordAccordingToSlice (Cell input, int sliceCoord) |
| void | getFieldSizeInfo (CellInterval &ciOut, cell_idx_t &ghostLayerOut) |
Protected Attributes | |
| const field_t * | field_ |
| CellInterval | sliceInterval_ |
| cell_idx_t | sliceDim_ |
| ConstBlockDataID | blockDataId_ |
Additional Inherited Members | |
| Signals inherited from walberla::gui::DisplayAdaptor | |
| void | requestRedraw () |
| This signal requests a redraw, for example after a configuration change. More... | |
Constructor & Destructor Documentation
◆ FieldDisplayAdaptor()
template<typename field_t >
|
inline |
Member Function Documentation
◆ configure()
template<typename field_t >
|
virtual |
Configures the DisplayAdaptor by passing in a block and slice information.
- Parameters
-
[in] block the block that should be displayed [in] sliceDim The coordinate value of this dimension is kept constant. Defines the slice direction 0 means x, 1 means y, 2 means z [in] sliceValue The fixed value of the sliceDim coordinate. If the value is not in the allowed range nothing is displayed [out] innerSize size of the field, without ghost layer. innerSize[0] is the horizontal extent and will be the first coordinate in the grid array of draw() innerSize[1] is the vertical extend and will be the second coordinate in the grid array innerSize[2] is used for limiting the allowed sliceValues [out] ghostLayers number of ghost layers for all three dimensions of innerSize
Implements walberla::gui::DisplayAdaptor.
Reimplemented in walberla::gui::ScalarField3DisplayAdaptor< field_t >, walberla::gui::VectorFieldDisplayAdaptor< field_t >, walberla::lbm::PdfFieldDisplayAdaptor< field_t, stencil_t >, walberla::gui::FlagFieldDisplayAdaptor< field_t >, and walberla::gui::ScalarFieldDisplayAdaptor< field_t >.
◆ getFieldSizeInfo()
template<typename field_t >
|
protected |
◆ permuteCoordAccordingToSlice()
template<typename field_t >
|
protected |
Member Data Documentation
◆ blockDataId_
template<typename field_t >
|
protected |
◆ field_
template<typename field_t >
|
protected |
◆ sliceDim_
template<typename field_t >
|
protected |
◆ sliceInterval_
template<typename field_t >
|
protected |
The documentation for this class was generated from the following file:
- /builds/administration/walberla-website/walberla/src/gui/BlockSliceView/FieldDisplayAdaptor.h
